FLEXIBLE PCBs
FLEXIBLE PCB TECHNOLOGY
Flexible printed circuit boards are boards that uses flexible based material in your applications. Providing Flexible PCB Technology to some of the most demanding market segments globally, the need for reliability and maximum process control are key to success. With many years experience in the supply of Flexible PCB’s this product is one close collaboration through all aspects of the design phase truly pays dividends.

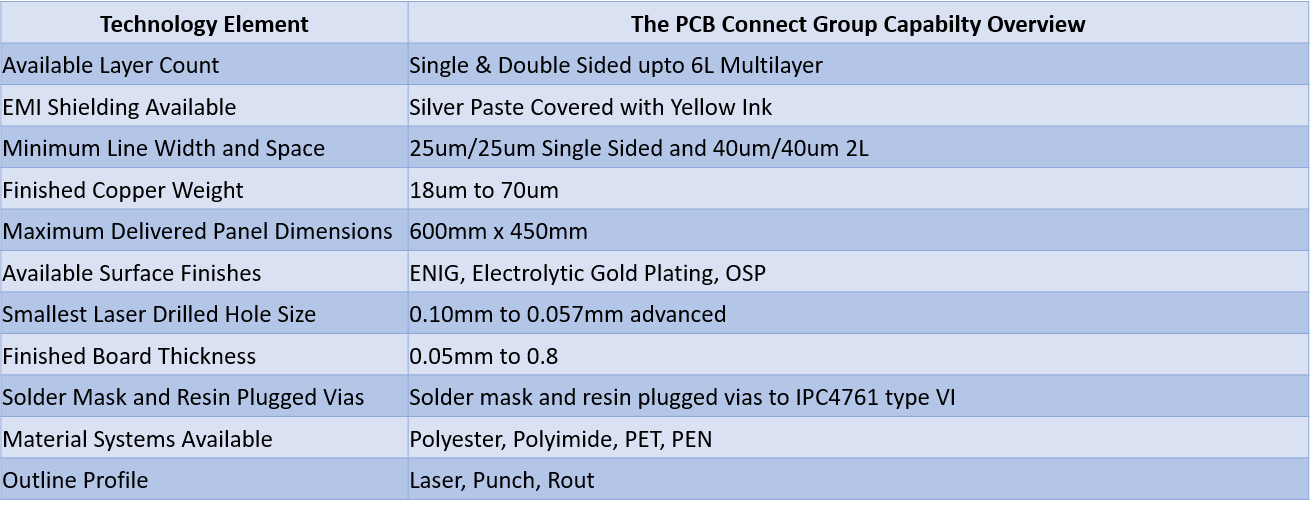

| Technology Element | The PCB Connect Group Capability Overview |
|---|---|
| Available Layer Count | Single & Double Sided up to 6L Multilayer |
| EMI Shielding Available | Silver Paste Covered with Yellow Ink |
| Minimum Line Width and Space | 25um/25um Single Sided and 40um/40um 2L |
| Finished Copper Weight | 18um to 70um |
| Maximum Delivered Panel Dimensions | 600mm x 450mm |
| Available Surface Finishes | ENIG, Electrolytic Gold Plating, OSP |
| Smallest Laser Drilled Hole Size | 0.10mm to 0.057mm Advanced |
| Finished Board Thickness | 0.05mm to 0.8mm |
| Solder Mask and Resin Plugged Vias | Solder Mask and Resin Plugged Vias to IPC4761 Type VI |
| Material Systems Available | Polyester, Polyamide, PET, PEN |
| Outline Profile | Laser, Punch, Rout |
